Blow Up
Spares

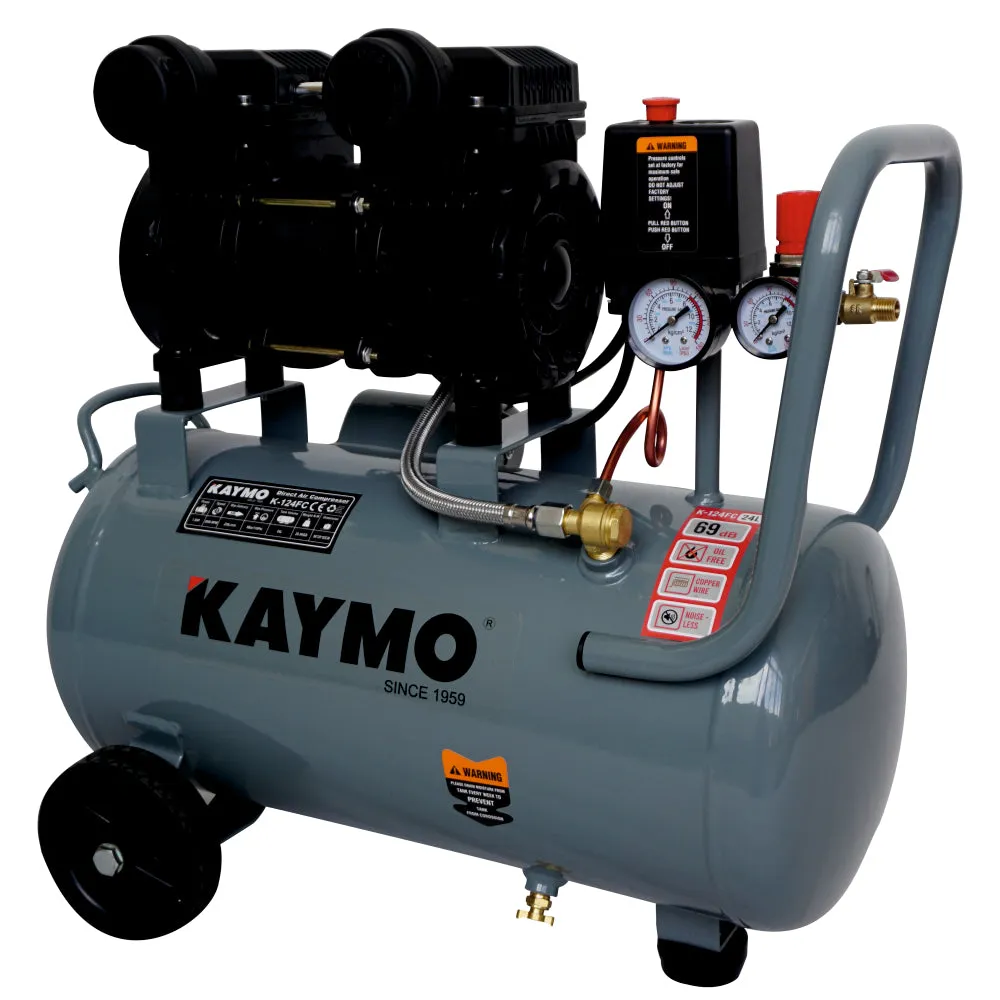

| TOOL MODEL | K-124FC | REV.1ST APRIL 23 | ||||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 1 | K124FC001 | Cover | K110FC001 | 35 | K124FC035 | Elbow | K110FC034 | |||
| 2 | K124FC002 | Left fan | K110FC002 | 36 | K124FC036 | Tank | ||||
| 3 | K124FC003 | Crankshaft | 37 | K124FC037 | Wired hose | K110FC035 | ||||
| 4 | K124FC004 | Hexagon socket screw | 38 | K124FC038 | Check valve | K110FC044 | ||||
| 5 | K124FC005 | Connecting rod | K110FC005 | 39 | K124FC039 | Hex nut | ||||
| 6 | K124FC006 | Piston cup | K110FC006 | 40 | K124FC040 | Rubber | ||||
| 7 | K124FC007 | Pressing plate | K110FC007 | 41 | K124FC041 | Flat gasket | K350FC042 | |||
| 8 | K124FC008 | Cross recess head screw | K110FC008 | 42 | K124FC042 | Hexagon bolt | K350FC043 | |||
| 9 | K124FC009 | Cylinder | K110FC009 | 43 | K124FC043 | Drain valve | K110FC051 | |||
| 10 | K124FC010 | Left box body | K110FC010 | 44 | K124FC044 | Axle | ||||
| 11 | K124FC011 | Seal gasket for cylinder | K110FC011 | 45 | K124FC045 | Wheel | ||||
| 12 | K124FC012 | Valve plate | K110FC012 | 46 | K124FC046 | Spring washer | ||||
| 13 | K124FC013 | Cylinder head gasket | K110FC013 | 47 | K124FC047 | Hex nut | ||||
| 14 | K124FC014 | Cylinder head | K110FC014 | 48 | K124FC048 | Unloading nut | ||||
| 15 | K124FC015 | Hexagon socket screw | K110FC015 | 49 | K124FC049 | Unloading pipe | ||||
| 16 | K124FC016 | Connection aluminum tube | K110FC016 | 50 | K124FC050 | Paper pad | ||||
| 17 | K124FC017 | Tube o-rings | K110FC017 | 51 | K124FC051 | Switch connector | ||||
| 18 | K124FC018 | Cross recess pan head screw | K110FC018 | 52 | K124FC052 | Switch union nut | ||||
| 19 | K124FC019 | Stop block | K110FC019 | 53 | K124FC053 | Safety valve | K110FC044 | |||
| 20 | K124FC020 | Out of the air valve slice | K110FC020 | 54 | K124FC054 | Pressure switch | K124069 | |||
| 21 | K124FC021 | Intake valve slice | K110FC021 | 55 | K124FC055 | Double joint | K110FC040 | |||
| 22 | K124FC022 | Strengthen the gasket | K110FC022 | 56 | K124FC056 | Regulator valve | K124070 | |||
| 23 | K124FC023 | Socket head screw | K110FC023 | 57 | K124FC057 | Ball valve | K110FC043 | |||
| 24 | K124FC024 | Right fan | K350FC024 | 58 | K124FC058 | Pressure gage Y40 | K124072 | |||
| 25 | K124FC025 | Bearing | K110FC024 | 59 | K124FC059 | Pressure gage Y50 | K110FC039 | |||
| 26 | K124FC026 | The right Box | K110FC025 | 60 | K124FC060 | Electrical wires | K110FC036 | |||
| 27 | K124FC027 | Lead skirts | K110FC026 | 61 | K124FC061 | Amphenol connector O type | ||||
| 28 | K124FC028 | Hexagon bolt | K110FC027 | 62 | K124FC062 | Amphenol connector U type | ||||
| 29 | K124FC029 | Cross pan head screw | K350FC029 | 63 | K124FC063 | Power plug | ||||
| 30 | K124FC030 | Stator | K110FC029 | 64 | K124FC064 | Capacitance |
